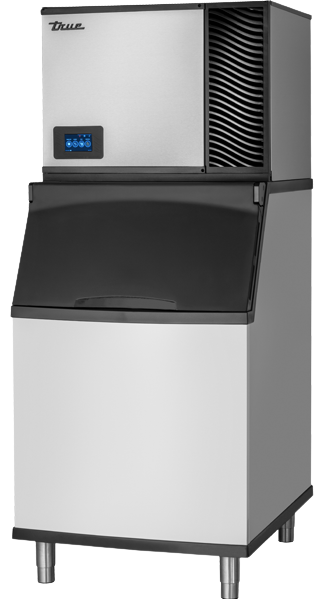

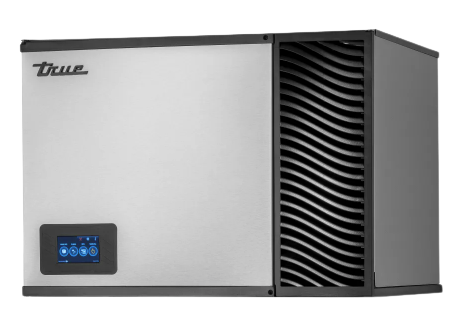

True TCIM-630 Modular Cubed Ice Maker – Up to 640 lb Daily Production
The True TCIM-630 delivers powerful ice production with cutting-edge sanitation and efficiency features. Ideal for high-volume commercial use, this modular unit supports multiple cube sizes and integrates smart touch control and remote monitoring.
Key Features:
- Produces up to 640 lbs of ice per 24 hours
- Energy-efficient R290 refrigeration system
- Up to 37% below Energy Star standards*
- TrueZone® air purification and TrueGuard™ antimicrobial protection
- Tool-free food zone component removal and 1-touch cleaning
- RCU technology for easy air filter maintenance
Smart Touch Control System:
- 4.3" front touchscreen display – industry’s largest
- Built-in diagnostics, alarms, and push notifications
- Time-of-Flight™ sensor eliminates bin thermostat needs
- Remote monitoring with backend access and remote shutoff
- Customizable, programmable ice production
Cube Size Options:
- Half Cube: 7/16” x 1-1/8” x 7/8” (11.1 x 28.6 x 22.2 mm)
- Full Cube: 7/8” x 7/8” x 7/8” (22.2 x 22.2 x 22.2 mm)
- Large Cube: 1-1/8” x 1-1/8” x 7/8” (28.6 x 28.6 x 22.2 mm)
Specifications:
| Model | Cube Size | Ice Production (24hr) | Water Usage | Electrical |
|---|---|---|---|---|
| TCIM-630-HA1-A | Half | 640 lbs @ 70°F / 580 lbs @ 90°F | 13.8 gal / 100 lb | 115V / 15A / 1Ph |
| TCIM-630-FA1-A | Full | 640 lbs | N/A | 115V / 15A / 1Ph |
| TCIM-630-LA1-A | Large | 640 lbs | N/A | 115V / 15A / 1Ph |
Dimensions & Connections:
- Overall Dimensions: 30" W x 24" D x 22" H (767 x 627 x 564 mm)
- Water Inlet: 1/2" FNPT • Water Outlet: 3/4" FNPT
- Air-cooled design – 6" clearance required front and back
- Electrical: 104–127 VAC / 60Hz / 1Ph
Warranty:
- 3-Year Parts & Labor on Ice Maker
- 5-Year Parts on Compressor
- 5-Year Parts & Labor on Evaporator
Part of the True Ice Series – Trusted Performance. Smart Engineering.
