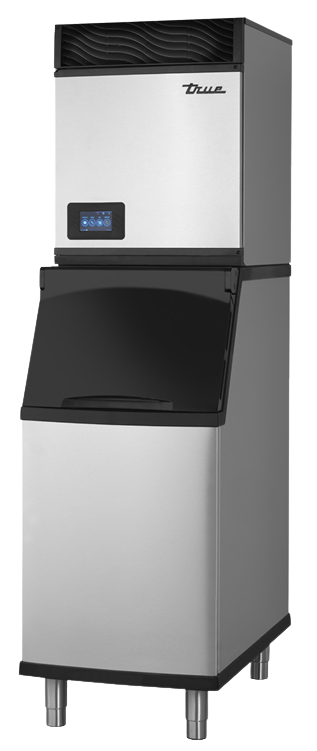

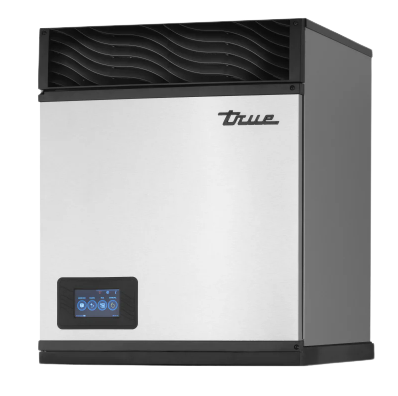

True TCIM-622 Modular Cubed Ice Maker – Up to 640 lb Daily Production
The True TCIM-622 is a modular cubed ice maker built for performance, efficiency, and sanitation in high-demand commercial environments. Designed with advanced control features and multiple cube sizes, the TCIM-622 ensures flexible operation and reliable output.
Key Features:
- Produces up to 640 lbs of ice in 24 hours
- Environmentally friendly R290 refrigeration system
- Meets or exceeds Energy Star standards (up to 37% below)
- TrueZone® and TrueGuard™ antimicrobial protection
- Tool-free, removable food zone components and air filter
- 1-touch cleaning function for easy maintenance
Smart Touch Control System:
- Large 4.3" front touchscreen display
- Built-in alarms and predictive diagnostics
- Programmable ice production settings
- Remote monitoring with backend access and location-based optimization
- Time-of-Flight™ ice sensor – no bin thermostat required
Cube Size Options:
- Half Cube: 7/16” x 1-1/8” x 7/8” (11.1 x 28.6 x 22.2 mm)
- Full Cube: 7/8” x 7/8” x 7/8” (22.2 x 22.2 x 22.2 mm)
- Large Cube: 1-1/8” x 1-1/8” x 7/8” (28.6 x 28.6 x 22.2 mm)
Specifications:
| Model | Cube Size | Ice Production (24hr) | Water Usage | Electrical |
|---|---|---|---|---|
| TCIM-622-HA1-A | Half | 640 lbs @ 70°F / 580 lbs @ 90°F | 14.2 gal / 100 lb | 115V / 15A / 1Ph |
| TCIM-622-FA1-A | Full | 640 lbs | N/A | 115V / 15A / 1Ph |
| TCIM-622-LA1-A | Large | 640 lbs | N/A | 115V / 15A / 1Ph |
Dimensions & Connections:
- Overall Dimensions: 22" W x 24" D x 27" H (559 x 610 x 686 mm)
- Water Inlet: 1/2" FNPT • Water Outlet: 3/4" FNPT
- Electrical: 104–127 VAC / 60Hz / 1Ph
- Air-cooled design requires 6" clearance front and back
Warranty:
- 3-Year Parts & Labor on Ice Maker
- 5-Year Parts on Compressor
- 5-Year Parts & Labor on Evaporator
Part of the True Ice Series – Advanced, Energy-Efficient, and Built to Last.
