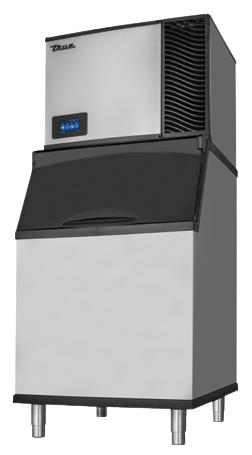

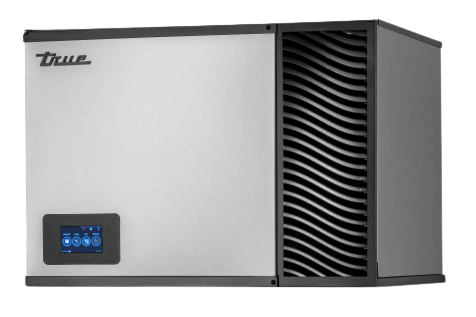

True TCIM-530 Modular Cubed Ice Maker – Up to 560 lb Daily Production
The True TCIM-530 is a compact modular cubed ice maker delivering high performance and industry-leading sanitation. Featuring intelligent controls and antimicrobial design, the TCIM-530 is ideal for commercial environments requiring up to 560 lbs of fresh ice daily.
Key Features:
- Produces up to 560 lbs of ice in 24 hours
- Environmentally responsible R290 refrigerant
- Exceeds Energy Star standards by up to 37%*
- TrueZone® air purification (optional) and TrueGuard™ antimicrobial plastic components
- Tool-free removable food zone parts and 1-touch cleaning
- RCU technology for easy air filter maintenance
Smart Touch Control System:
- Large 4.3" touchscreen with intuitive controls
- Advanced diagnostics, built-in alarms, and notifications
- Time-of-Flight™ sensor eliminates need for bin thermostats
- Remote performance monitoring and control with location-based optimization
- Fully programmable ice production settings
Cube Size Options:
- Half Cube: 7/16” x 1-1/8” x 7/8” (11.1 x 28.6 x 22.2 mm)
- Full Cube: 7/8” x 7/8” x 7/8” (22.2 x 22.2 x 22.2 mm)
- Large Cube: 1-1/8” x 1-1/8” x 7/8” (28.6 x 28.6 x 22.2 mm)
Specifications:
| Model | Cube Size | Ice Production (24hr) | Water Usage | Electrical |
|---|---|---|---|---|
| TCIM-530-HA1-A | Half | 560 lbs @ 70°F / 500 lbs @ 90°F | 14.2 gal / 100 lb | 115V / 15A / 1Ph |
| TCIM-530-FA1-A | Full | 560 lbs | N/A | 115V / 15A / 1Ph |
| TCIM-530-LA1-A | Large | 560 lbs | N/A | 115V / 15A / 1Ph |
Dimensions & Connections:
- Overall Dimensions: 30" W x 24" D x 22" H (762 x 610 x 559 mm)
- Water Inlet: 1/2" FNPT • Water Outlet: 3/4" FNPT
- Air-cooled unit – requires 6" clearance front and rear
- Electrical: 104–127 VAC / 60Hz / 1Ph
Warranty:
- 3-Year Parts & Labor on Ice Maker
- 5-Year Parts on Compressor
- 5-Year Parts & Labor on Evaporator
Part of the True Ice Series – Compact Footprint. Commercial Grade Performance.
