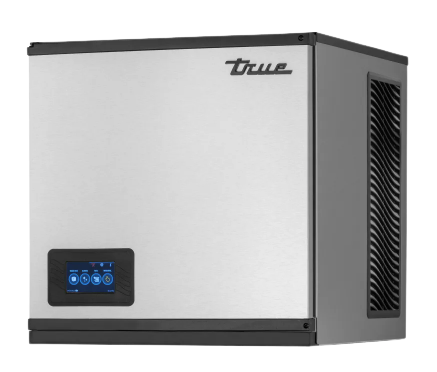

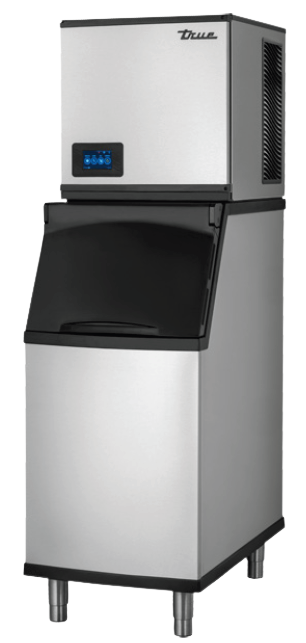

True TCIM-522 Modular Cubed Ice Maker – Up to 560 lb Daily Production
The True TCIM-522 is a compact, energy-efficient modular ice machine built for commercial use. With a daily output of up to 560 lbs and enhanced antimicrobial features, it delivers exceptional sanitation, smart control, and superior ice quality across multiple cube sizes.
Key Features:
- Produces up to 560 lbs of ice per 24 hours
- Eco-friendly R290 refrigeration system
- Up to 37% below Energy Star standards*
- TrueZone® air purification (optional) and TrueGuard™ antimicrobial components
- Removable food zone parts with no tools required
- Simple 1-touch cleaning and RCU air filter technology
Smart Touch Control System:
- Large 4.3" touchscreen interface
- Advanced diagnostics, alerts, and programmable production
- Time-of-Flight™ ice sensor – no bin thermostat required
- Remote monitoring, shutoff, and performance data access
Cube Size Options:
- Half Cube: 7/16” x 1-1/8” x 7/8” (11.1 x 28.6 x 22.2 mm)
- Full Cube: 7/8” x 7/8” x 7/8” (22.2 x 22.2 x 22.2 mm)
- Large Cube: 1-1/8” x 1-1/8” x 7/8” (28.6 x 28.6 x 22.2 mm)
Specifications:
| Model | Cube Size | Ice Production (24hr) | Water Usage | Electrical |
|---|---|---|---|---|
| TCIM-522-HA1-A | Half | 560 lbs @ 70°F / 500 lbs @ 90°F | 14.0 gal / 100 lb | 115V / 15A / 1Ph |
| TCIM-522-FA1-A | Full | 560 lbs | N/A | 115V / 15A / 1Ph |
| TCIM-522-LA1-A | Large | 560 lbs | N/A | 115V / 15A / 1Ph |
Dimensions & Connections:
- Overall Dimensions: 22" W x 24" D x 22" H (559 x 609 x 559 mm)
- Water Inlet: 1/2" FNPT • Water Outlet: 3/4" FNPT
- Air-cooled system requires 6" clearance on left, right, and rear
- Electrical: 104–127 VAC / 60Hz / 1Ph
Warranty:
- 3-Year Parts & Labor on Ice Maker
- 5-Year Parts on Compressor
- 5-Year Parts & Labor on Evaporator
Part of the True Ice Series – Sanitary. Smart. Efficient. Built for Commercial Demands.
