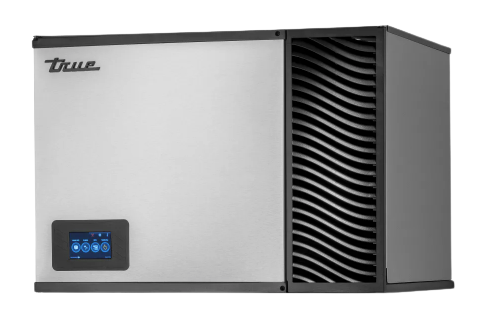

True TCIM-430 Modular Cubed Ice Maker – Up to 447 lb Daily Production
The True TCIM-430 is a compact modular cubed ice machine designed for efficiency, hygiene, and smart operation. With a daily output of up to 447 lbs and advanced antimicrobial protection, it’s the ideal solution for commercial operations that require reliable, high-quality ice production.
Key Features:
- Produces up to 447 lbs of ice per 24 hours
- Energy-efficient R290 refrigerant system
- Up to 37% below Energy Star standards*
- TrueZone® air purification (optional) & TrueGuard™ antimicrobial components
- Tool-free removal of internal food zone pieces
- RCU-enabled air filter for easy maintenance
- Simple 1-touch cleaning for quick sanitation
Smart Touch Control System:
- 4.3" front touchscreen – largest in the industry
- Advanced diagnostics and system alerts with push notifications
- Time-of-Flight™ sensor – no bin thermostat required
- Programmable ice production modes
- Remote monitoring and shutoff via backend access
Cube Size Options:
- Half Cube: 7/16” x 1-1/8” x 7/8” (11.1 x 28.6 x 22.2 mm)
- Full Cube: 7/8” x 7/8” x 7/8” (22.2 x 22.2 x 22.2 mm)
- Large Cube: 1-1/8” x 1-1/8” x 7/8” (28.6 x 28.6 x 22.2 mm)
Specifications:
| Model | Cube Size | Ice Production (24hr) | Water Usage | Electrical |
|---|---|---|---|---|
| TCIM-430-HA1-A | Half | 447 lbs @ 70°F / 376 lbs @ 90°F | 14.3 gal / 100 lb | 115V / 15A / 1Ph |
| TCIM-430-FA1-A | Full | 447 lbs | N/A | 115V / 15A / 1Ph |
| TCIM-430-LA1-A | Large | 447 lbs | N/A | 115V / 15A / 1Ph |
Dimensions & Connections:
- Overall Dimensions: 30" W x 24" D x 22" H (767 x 627 x 564 mm)
- Water Inlet: 1/2" FNPT • Water Outlet: 3/4" FNPT
- Air-cooled design – requires 6" clearance front and rear
- Electrical: 104–127 VAC / 60Hz / 1Ph
Warranty:
- 3-Year Parts & Labor on Ice Maker
- 5-Year Parts on Compressor
- 5-Year Parts & Labor on Evaporator
Part of the True Ice Series – Sanitary. Smart. Space-Saving.
