Description

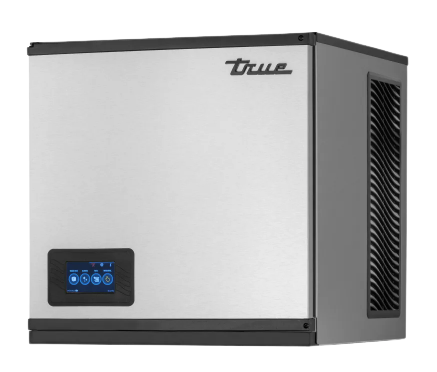

True TCIM-422 Modular Cubed Ice Maker – Up to 447 lb Daily Production
The True TCIM-422 commercial modular ice machine delivers efficient, compact ice production in a durable modular design. Producing up to 447 lbs of ice per day, this machine is ideal for restaurants, bars, hotels, and high-volume kitchens that require sanitary operation and smart automation. This 22″ modular ice maker offers energy-efficient R290 cooling and advanced touchscreen controls.
Key Features:
- Produces up to 447 lbs of ice per 24 hours
- Eco-friendly R290 refrigeration system
- Up to 37% below Energy Star standards*
- TrueZone® air purification and TrueGuard™ antimicrobial interior components
- Tool-free removal of food zone pieces
- 1-touch cleaning and RCU-equipped air filter
Smart Touch Control System:
- 4.3" touchscreen display with intuitive navigation
- Built-in alarms, advanced diagnostics, and performance monitoring
- Time-of-Flight™ sensor removes the need for traditional bin thermostats
- Remote shutoff and backend monitoring capability
- Programmable ice production schedules
Cube Size Options:
- Half Cube: 7/16” x 1-1/8” x 7/8” (11.1 x 28.6 x 22.2 mm)
- Full Cube: 7/8” x 7/8” x 7/8” (22.2 x 22.2 x 22.2 mm)
- Large Cube: 1-1/8” x 1-1/8” x 7/8” (28.6 x 28.6 x 22.2 mm)
Specifications:
| Model | Cube Size | Ice Production (24hr) | Water Usage | Electrical |
|---|---|---|---|---|
| TCIM-422-HA1-A | Half | 447 lbs @ 70°F / 376 lbs @ 90°F | 14.8 gal / 100 lb | 115V / 15A / 1Ph |
| TCIM-422-FA1-A | Full | 447 lbs | N/A | 115V / 15A / 1Ph |
| TCIM-422-LA1-A | Large | 447 lbs | N/A | 115V / 15A / 1Ph |
Dimensions & Connections:
- Overall Dimensions: 22" W x 24" D x 22" H (559 x 610 x 559 mm)
- Water Inlet: 1/2" FNPT • Water Outlet: 3/4" FNPT
- Air-cooled design – requires 6" clearance on left, right, and rear
- Electrical: 104–127 VAC / 60Hz / 1Ph
Warranty:
- 3-Year Parts & Labor on Ice Maker
- 5-Year Parts on Compressor
- 5-Year Parts & Labor on Evaporator
Part of the True Ice Series – Clean Design. Consistent Output. Commercial Ready.
