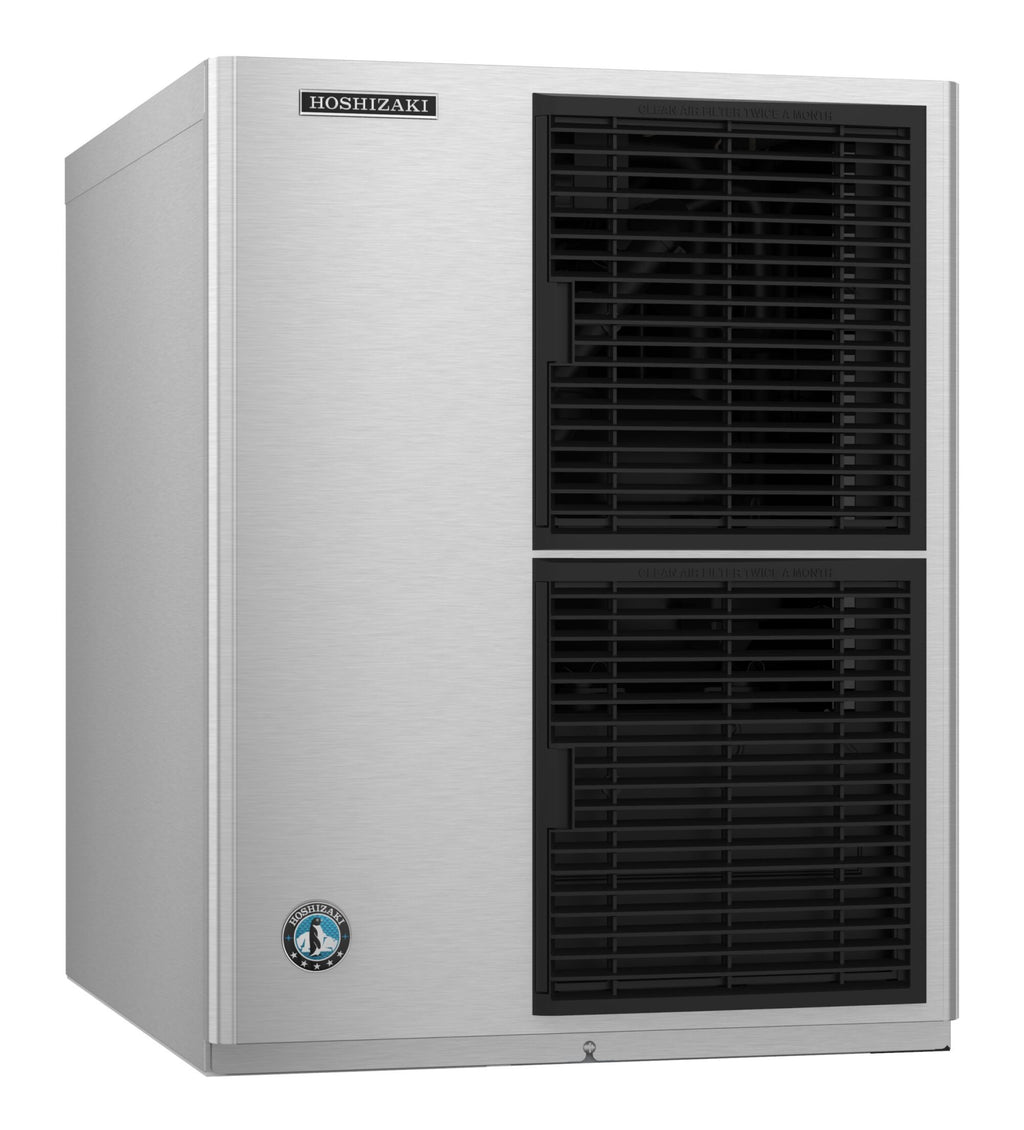

Hoshizaki KM-350MAJ Modular Crescent Cuber – Up to 489 lb Daily Production
The Hoshizaki KM-350MAJ is a slim-line, air‑cooled modular crescent cuber built for reliability and easy maintenance. With stainless steel construction, one‑hour cleaning, and Hoshizaki’s CycleSaver™ and EverCheck™ technologies, it’s a compact workhorse for commercial beverage and foodservice operations.
Key Features:
- Produces up to 489 lbs of ice per 24 hours @ 70°F air / 50°F water (414 lbs @ 90°F air / 70°F water)
- Individual crescent cube; stainless steel double‑sided evaporator
- CycleSaver™ design and EverCheck™ alert system
- Protected by H‑GUARD Plus® antimicrobial agent
- Factory‑installed ultrasonic bin control (adjustable on site)
- Simple, one‑hour cleaning with snap‑fit parts
- Removable/cleanable air filters (air‑cooled)
- R‑404A refrigerant
Specifications:
| Model | Condenser Type | Ice Production (70°F/50°F) | Ice Production (90°F/70°F) | Water Usage | Energy Usage | Electrical |
|---|---|---|---|---|---|---|
| KM-350MAJ | Air-Cooled | 489 lbs | 414 lbs | 14.5 gal / 100 lbs | 5.42 kWh / 100 lbs | 115V / 60Hz / 1Ph • 15A MCA |
Dimensions & Connections:
- Overall Dimensions: 22" W x 27-3/8" D x 28" H
- Clearances: 6" at rear, sides, and top
- Water Inlet: minimum 1/4" ID copper tubing
- Drain: minimum 3/4" ID hard pipe or equivalent
- Voltage Range: 104–127V
- Heat Rejection: 5,700 BTU/hr
- Refrigerant Charge: 1 lb. 3.4 oz. (R‑404A)
- Net / Ship Weight: 125 / 175 lbs
Bin & Dispenser Compatibility:

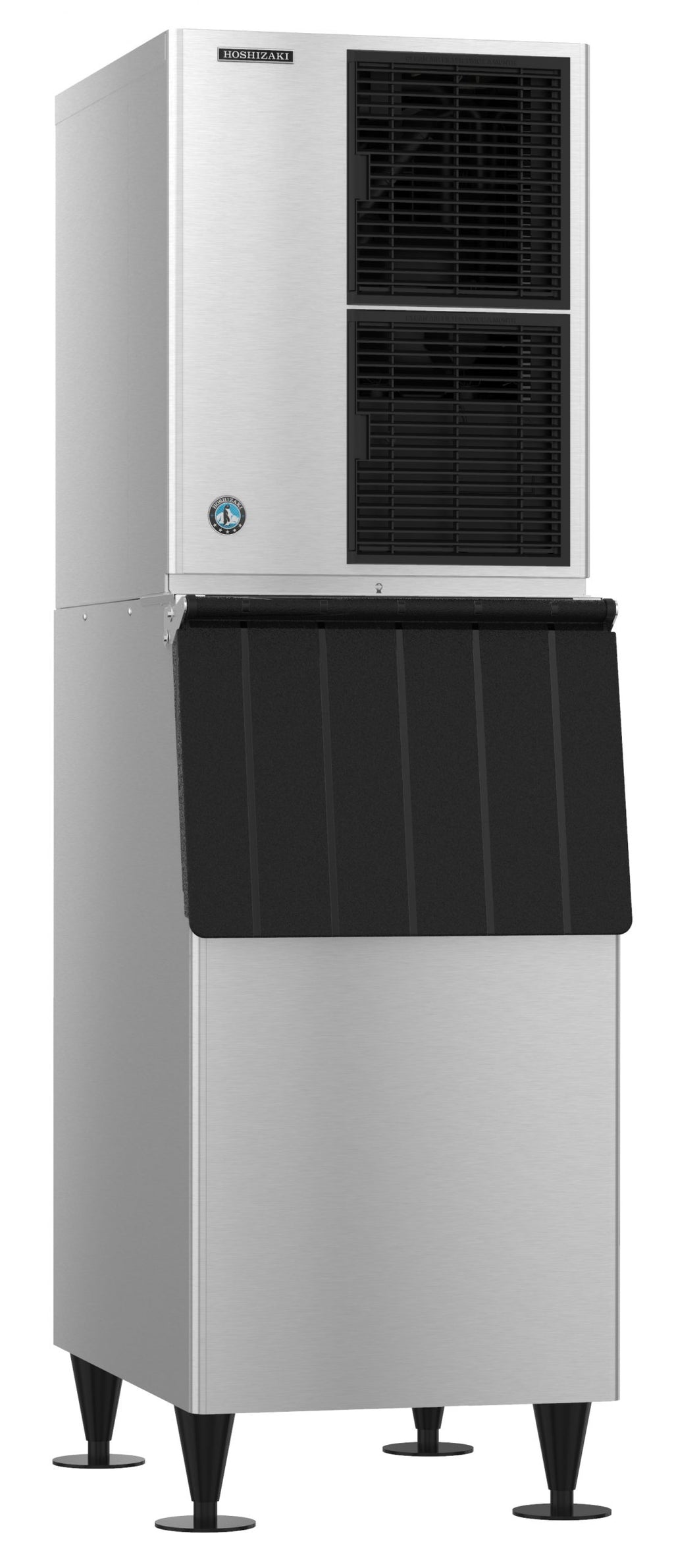

- B-250SF, B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS
- DB-130H, DB-200H, DM-200B (top kit may be required)
Warranty:
- 3-Year Parts & Labor on entire machine
- 5-Year Parts & Labor on evaporator
- 5-Year Parts on compressor and air‑cooled condenser coil
Part of Hoshizaki’s Slim‑Line Modular Crescent Cuber Series — compact footprint, dependable output, and fast maintenance.
