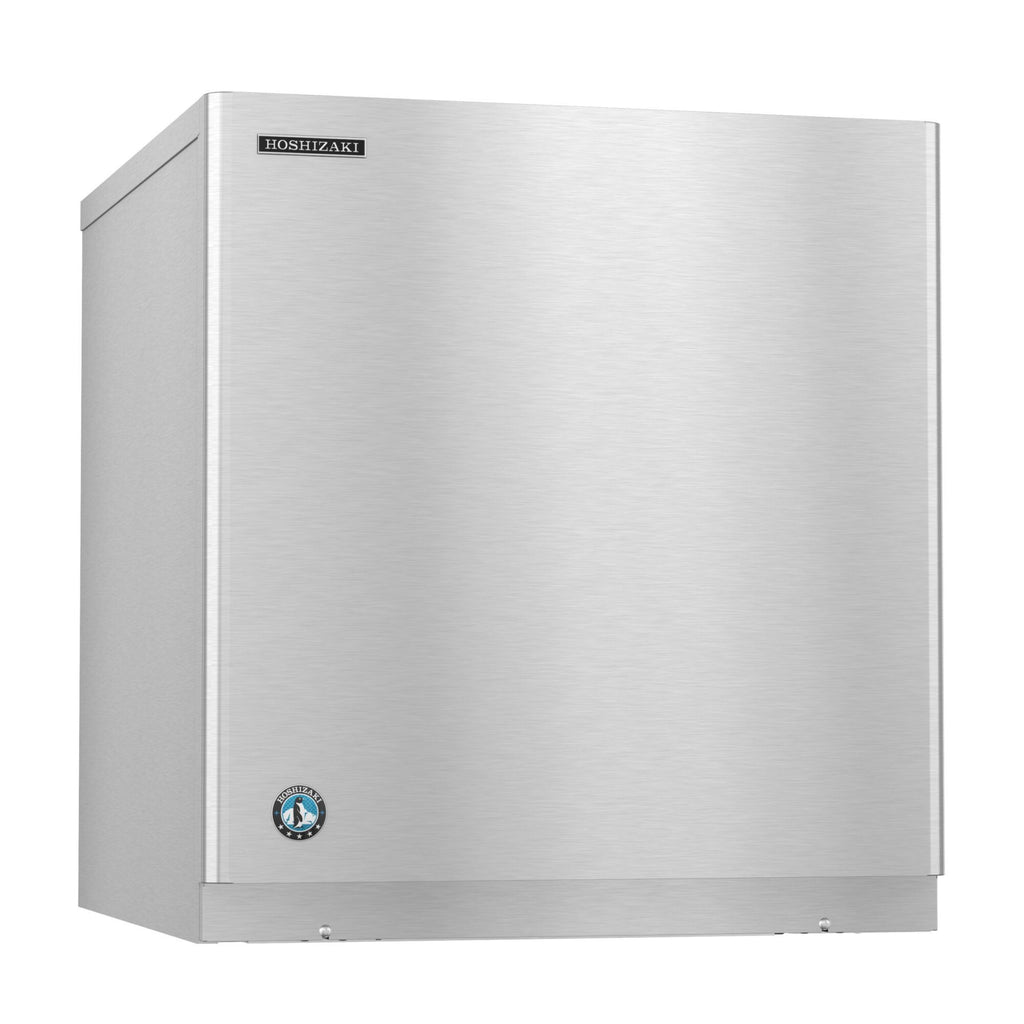

Hoshizaki KMD-410MAJ Modular Crescent Cuber – Up to 449 lb Daily Production
The Hoshizaki KMD-410MAJ is a durable, high-performance modular crescent cuber designed specifically for ice and beverage dispensers. With its stainless steel exterior, energy-efficient design, and simple maintenance features, it is ideal for commercial environments that require consistent, high-quality ice production.
Replaces Model: KMD-410MAH
Key Features:
- Produces up to 449 lbs of ice per 24 hours at 70°F air / 50°F water (418 lbs at 90°F air / 70°F water)
- Individual crescent cube shape for superior beverage presentation
- CycleSaver™ design for reduced operating cycles
- EverCheck™ alert system for preventative maintenance
- Durable stainless steel exterior and stainless steel evaporator
- Removable air filters (air-cooled model)
- Uses environmentally responsible R-404A refrigerant
Specifications:
| Model | Condenser Type | Ice Production (70°F/50°F) | Ice Production (90°F/70°F) | Water Usage | Energy Usage | Voltage / Amps |
|---|---|---|---|---|---|---|
| KMD-410MAJ | Air-Cooled | 449 lbs | 418 lbs | 5.7 gal / 100 lbs | 4.1 kWh / 100 lbs | 115V / 20A |
Dimensions & Connections:
- Overall Dimensions: 22-1/4" W x 24-1/8" D x 24" H
- Clearances: 6" rear, left side, and top; 12" right side
- Water Inlet: Minimum 1/4" ID copper tubing
- Drain: Minimum 3/4" ID hard pipe or equivalent
- Voltage Range: 104 – 127V
Bin Compatibility:
- B-250SF, B-500SF, B-700SF, B-800SF, B-900SF
- BD-300SF (for dispenser applications)
- Top kit required for some bin models
Warranty:
- 3-Year Parts & Labor on entire machine
- 5-Year Parts & Labor on evaporator
- 5-Year Parts on compressor and air-cooled condenser coil
Part of Hoshizaki’s Modular Crescent Cuber Series – Compact, Reliable, and Built for Beverage Service.
