Description

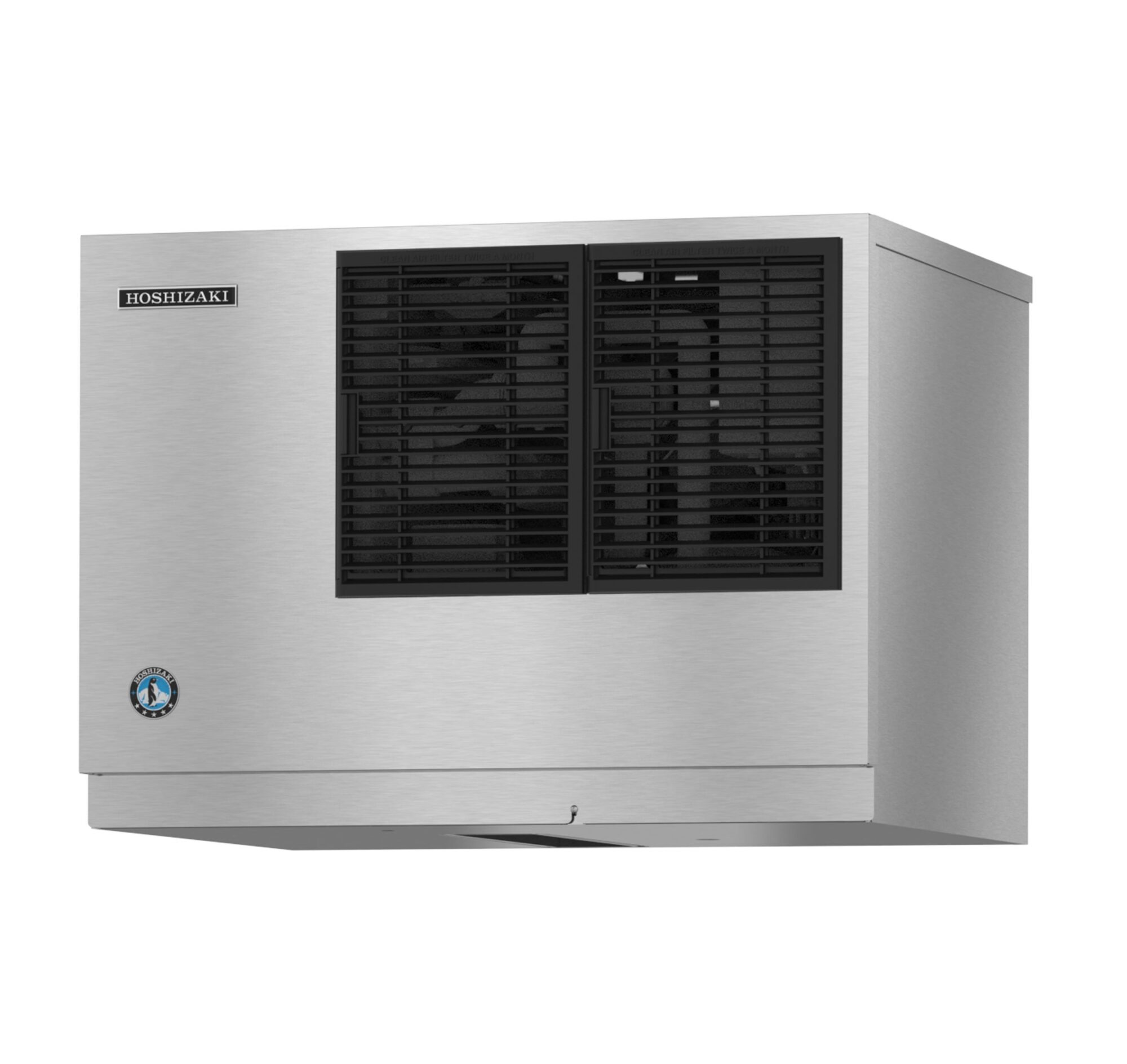

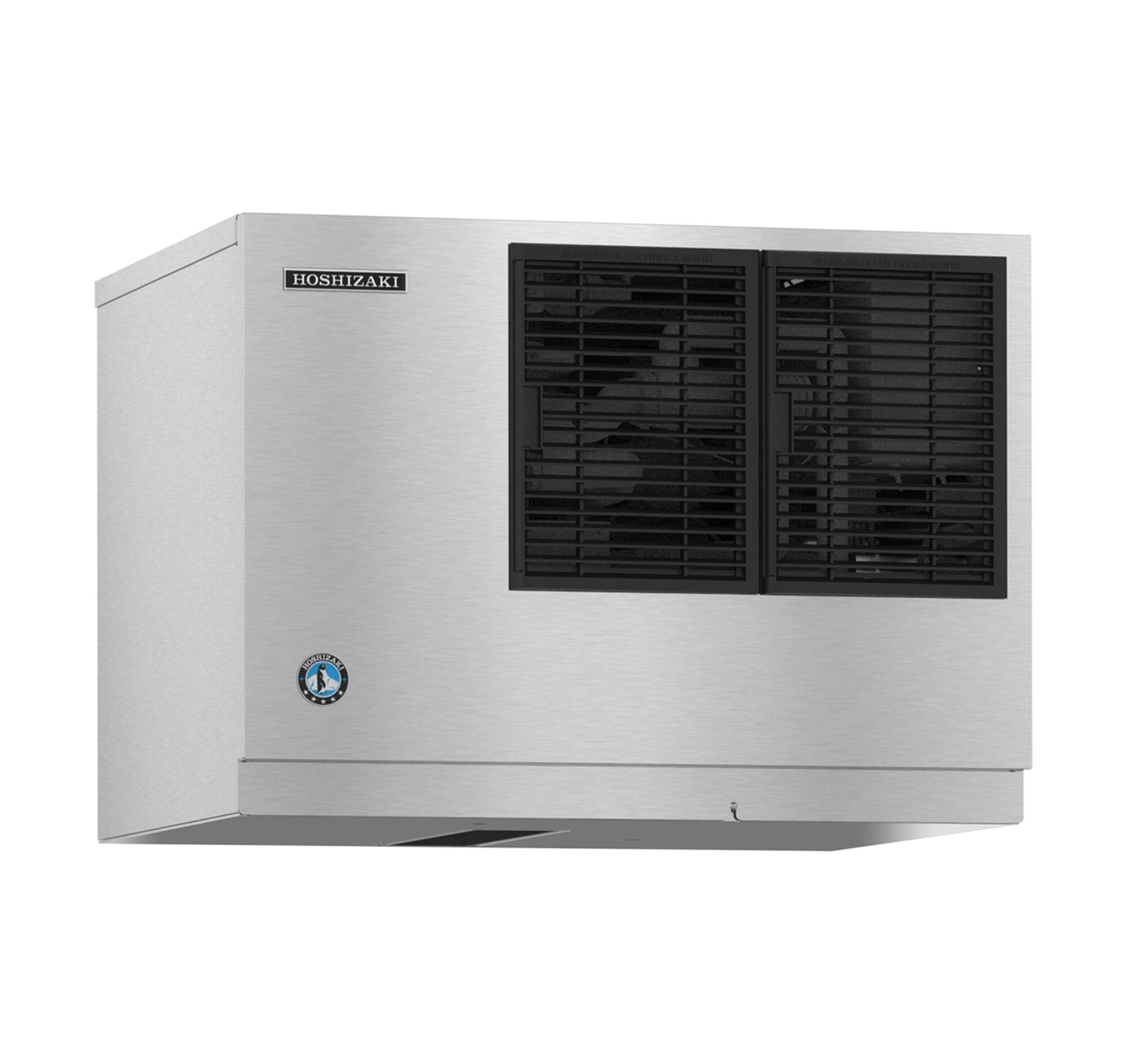

Hoshizaki KMD-505MAJ Modular Crescent Cuber – Up to 500 lb Daily Production

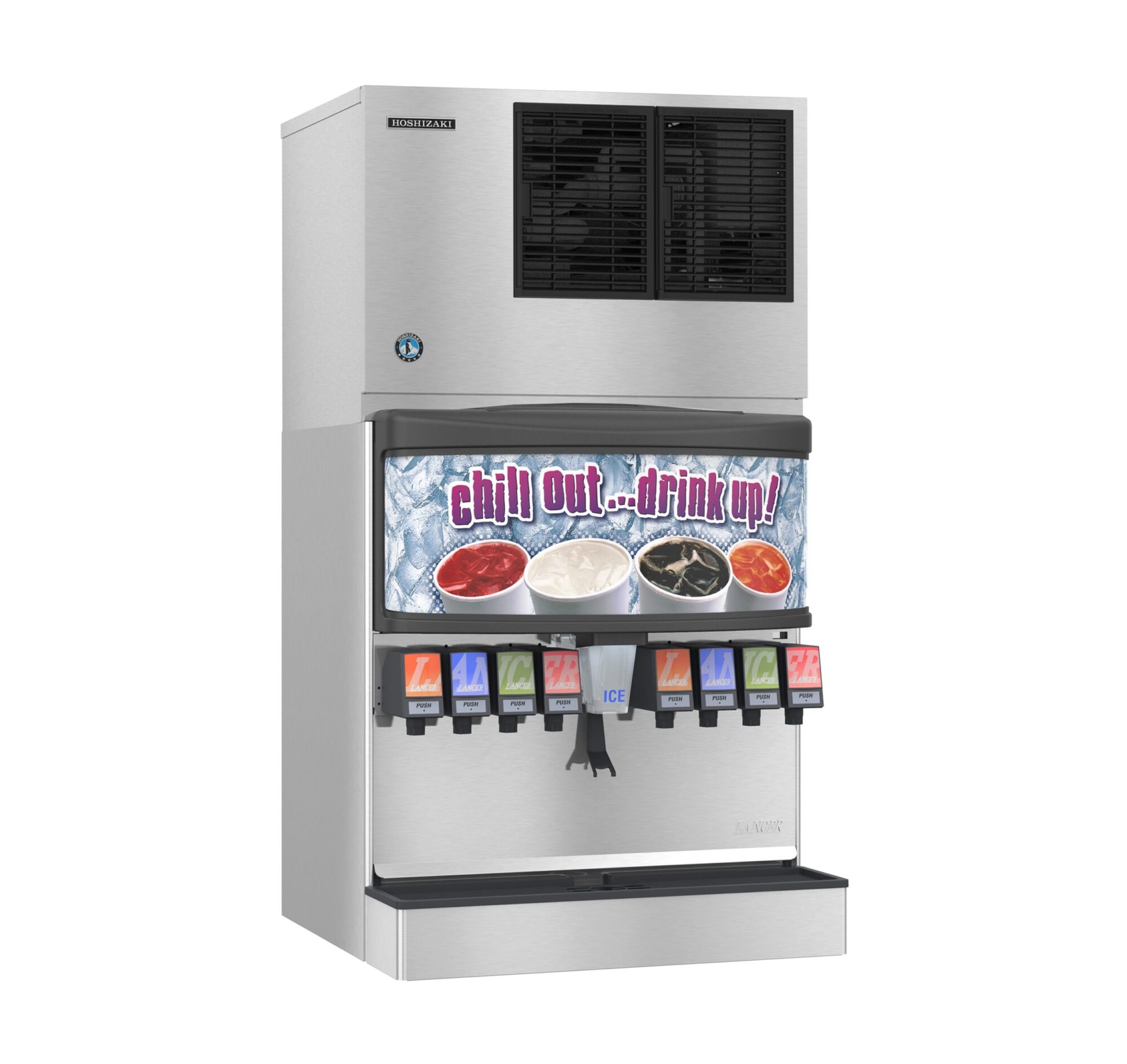

The Hoshizaki KMD-505MAJ is a high-capacity modular crescent cuber optimized for pairing with ice and beverage dispensers. Designed for easy cleaning, efficient operation, and reliable performance, it’s an ideal choice for commercial environments with high ice demand.
Replaces Models: KML-451MAH, KML-500MAJ
Key Features:
- Produces up to 592 lbs of ice per 24 hours at 70°F air / 50°F water (500 lbs at 90°F air / 70°F water)
- Individual crescent cube shape – perfect for beverage service
- CycleSaver™ design reduces cycles for efficiency
- EverCheck™ alert system for proactive maintenance
- Factory-installed ultrasonic bin control, adjustable on site
- Snap-fit parts and stainless steel double-sided evaporator for durability
- Removable/cleanable air filters (air-cooled model)
- Uses environmentally responsible R-404A refrigerant
Specifications:
| Model | Condenser Type | Ice Production (70°F/50°F) | Ice Production (90°F/70°F) | Water Usage | Energy Usage | Voltage / Amps |
|---|---|---|---|---|---|---|
| KMD-505MAJ | Air-Cooled | 592 lbs | 500 lbs | 5.70 gal / 100 lbs | 4.15 kWh / 100 lbs | 115V / 20A |
Dimensions & Connections:
- Overall Dimensions: 22" W x 21-1/4" D x 21-1/8" H
- Clearances: 6" rear, sides, and top
- Water Inlet: Minimum 1/4" ID copper tubing
- Drain: Minimum 3/4" ID hard pipe or equivalent
- Voltage Range: 104 – 127V
Bin Compatibility:
- B-250SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS
- BD-500SF (recommended for dispenser applications)
- Top kit may be required depending on bin model
Warranty:
- 3-Year Parts & Labor on entire machine
- 5-Year Parts & Labor on evaporator
- 5-Year Parts on compressor and air-cooled condenser coil
Part of Hoshizaki’s Modular Crescent Cuber Series – Designed for High-Volume, High-Quality Ice Production.
