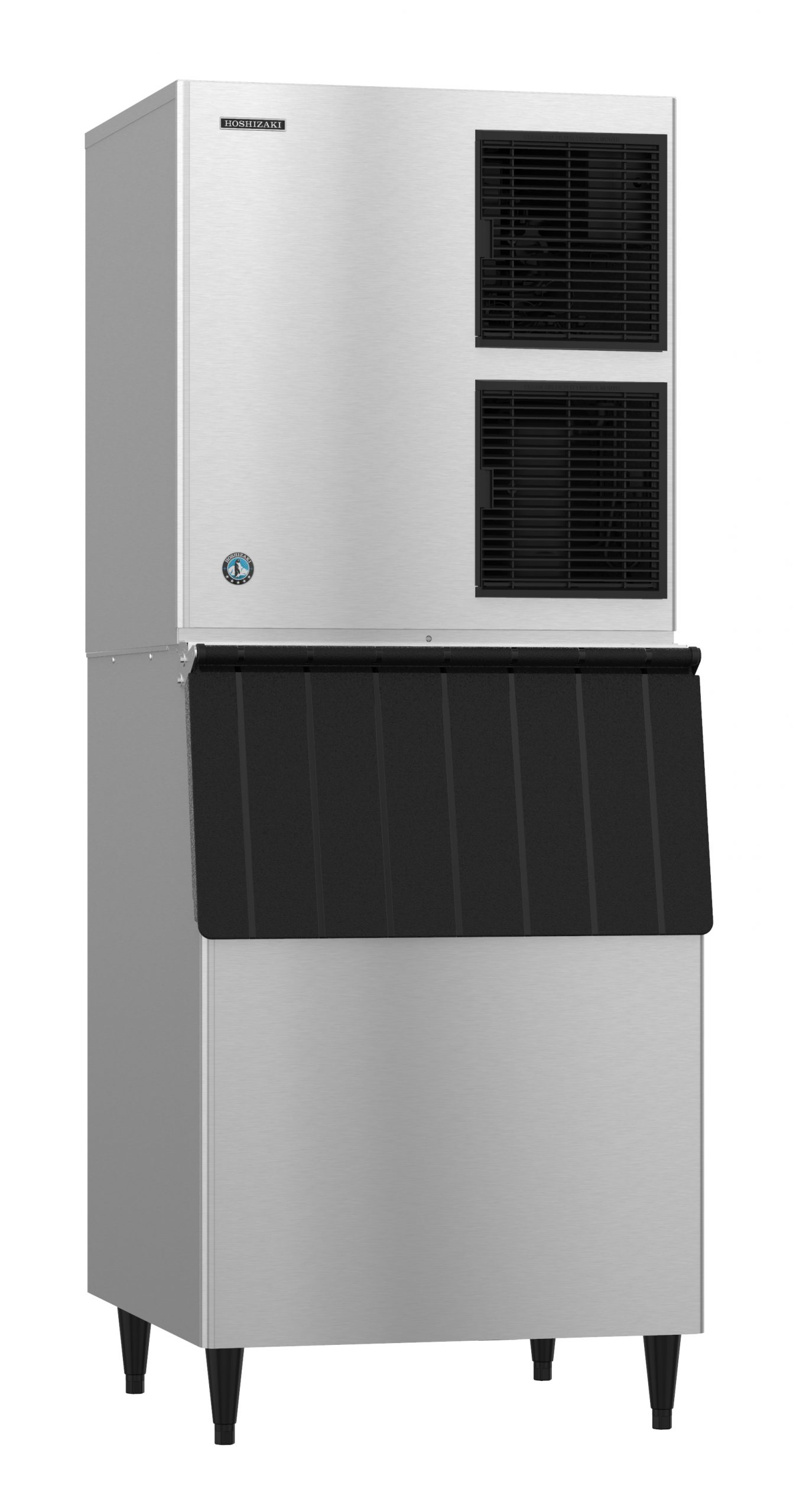

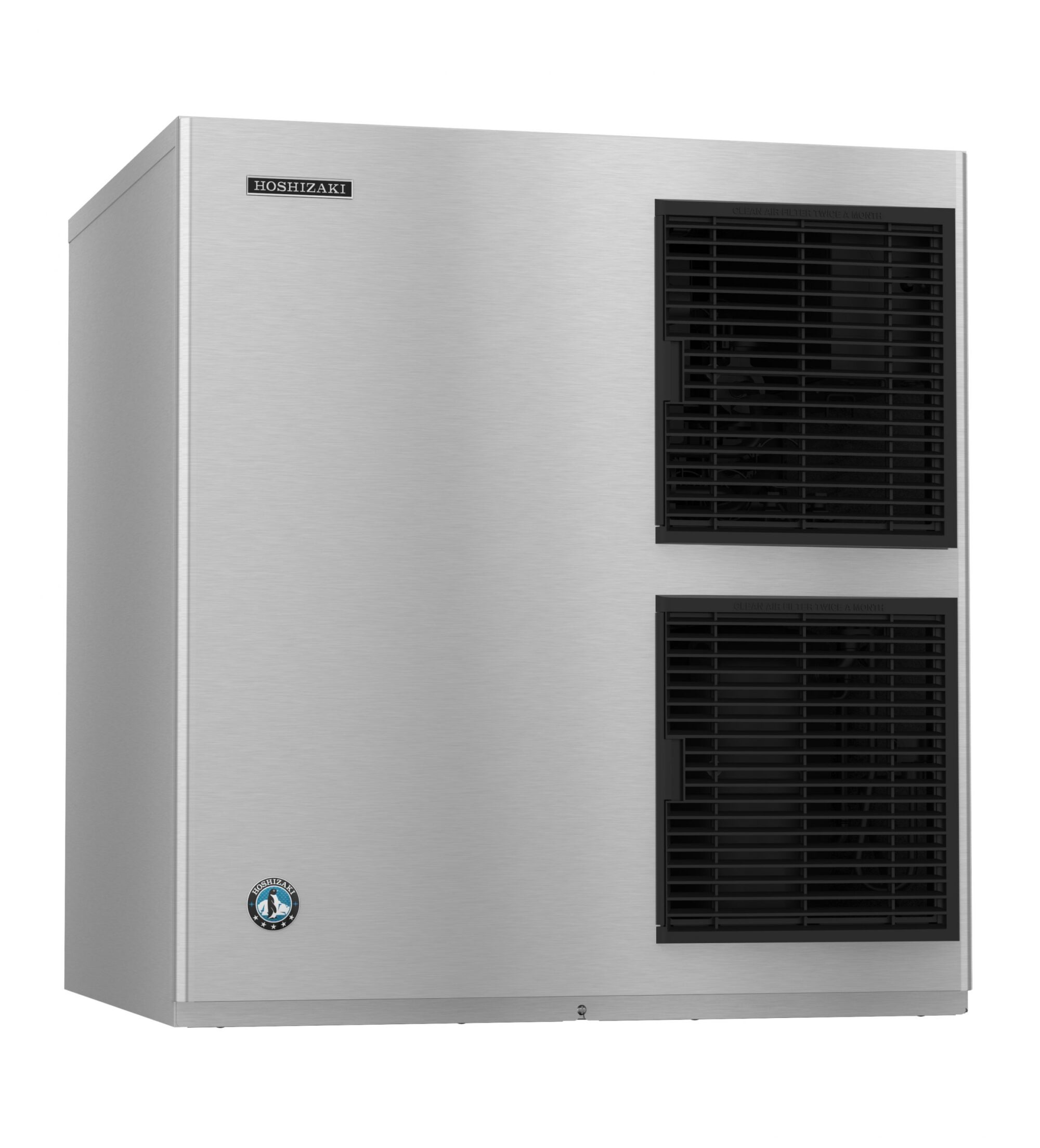

Hoshizaki KM-901MAJ Modular Crescent Cuber – Up to 950 lb Daily Production
The Hoshizaki KM-901MAJ delivers exceptional ice production with a compact footprint. Capable of producing up to 950 lbs of individual crescent cubes per day, this modular unit is built for high-volume commercial applications and can be paired with various bin options or mounted side-by-side for double capacity.
Replaces Model: KM-901MAH
Key Features:
- Produces up to 950 lbs of ice per 24 hours at 70°F air / 50°F water (905 lbs at 90°F air / 70°F water)
- Individual crescent cube design – durable and slow-melting
- CycleSaver™ design reduces operating cycles
- EverCheck™ alert system for preventive maintenance
- Durable stainless steel exterior and stainless steel evaporator
- Removable air filters (air-cooled model)
- Environmentally responsible R-404A refrigerant
- Mount two units side-by-side in only 60" of floor space
Specifications:
| Model | Condenser Type | Ice Production (70°F/50°F) | Ice Production (90°F/70°F) | Water Usage | Energy Usage | Voltage / Amps |
|---|---|---|---|---|---|---|
| KM-901MAJ | Air-Cooled | 950 lbs | 905 lbs | 5.0 gal / 100 lbs | 3.6 kWh / 100 lbs | 208-230V / 20A |
Dimensions & Connections:
- Overall Dimensions: 30" W x 27-3/8" D x 32-1/2" H
- Clearances: 12" rear, sides, and top
- Water Inlet: Minimum 3/8" ID copper tubing
- Drain: Minimum 3/4" ID hard pipe or equivalent
- Voltage Range: 187 – 253V
Bin Compatibility:
- B-250SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, B-1500SS*, B-1650SS*
- *Two-unit application only
- Top kit may be required for certain bins
Warranty:
- 3-Year Parts & Labor on entire machine
- 5-Year Parts & Labor on evaporator
- 5-Year Parts on compressor and air-cooled condenser coil
Part of Hoshizaki’s Modular Crescent Cuber Series – High-Capacity, Durable, and Built for Demanding Applications.
