Description

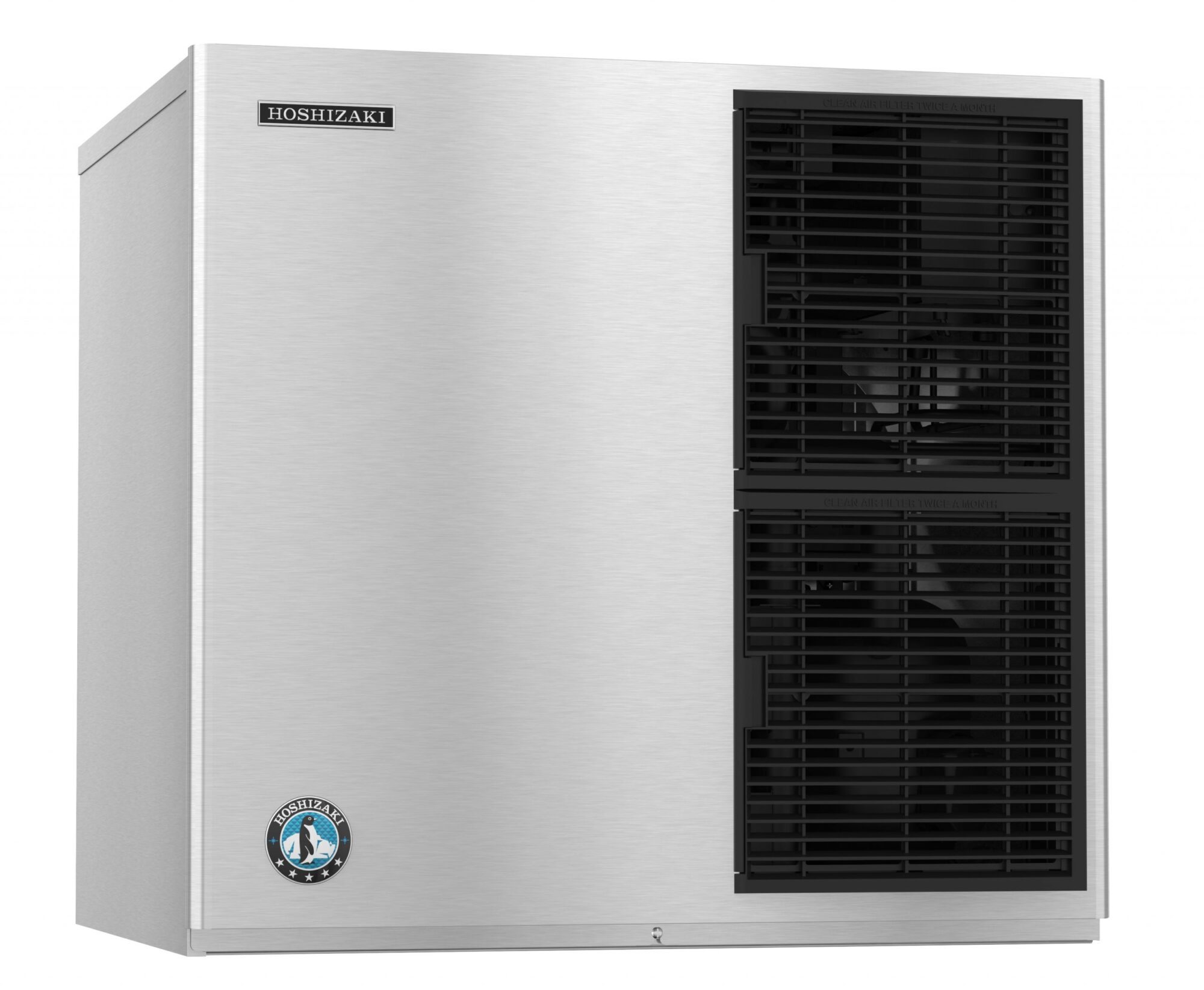

Hoshizaki KMD-860MAJ Modular Crescent Cuber – Up to 967 lb Daily Production
The Hoshizaki KMD-860MAJ delivers high-capacity ice production in a durable, compact design. Producing up to 967 lbs of crescent-shaped cubes daily, it is ideal for commercial beverage service and high-demand environments where reliability and efficiency are essential.
Key Features:
- Produces up to 967 lbs of ice per 24 hours at 70°F air / 50°F water (940 lbs at 90°F air / 70°F water)
- Individual crescent cube design – slow-melting and easy to handle
- CycleSaver™ design reduces the number of cycles for efficiency
- EverCheck™ alert system for preventive maintenance
- Durable stainless steel exterior with stainless steel evaporator
- Removable air filters for easy cleaning
- Environmentally responsible R-404A refrigerant
Specifications:
| Model | Condenser Type | Ice Production (70°F/50°F) | Ice Production (90°F/70°F) | Water Usage | Energy Usage | Voltage / Amps |
|---|---|---|---|---|---|---|
| KMD-860MAJ | Air-Cooled | 967 lbs | 940 lbs | 5.16 gal / 100 lbs | 3.90 kWh / 100 lbs | 208-230V / 20A |
Dimensions & Connections:
- Overall Dimensions: 30" W x 24-5/8" D x 28" H
- Clearances: 6" rear, sides, and top
- Water Inlet: Minimum 1/4" ID copper tubing
- Drain: Minimum 3/4" ID hard pipe or equivalent
- Voltage Range: 187 – 253V
Bin Compatibility:
- B-250SF, BD-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, B-1500SS*, B-1650SS*
- *Two-unit application only
- Top kit may be required depending on bin model
Warranty:
- 3-Year Parts & Labor on entire machine
- 5-Year Parts & Labor on evaporator
- 5-Year Parts on compressor and air-cooled condenser coil
Part of Hoshizaki’s Modular Crescent Cuber Series – Built for High-Capacity, Reliable, and Efficient Ice Production.
